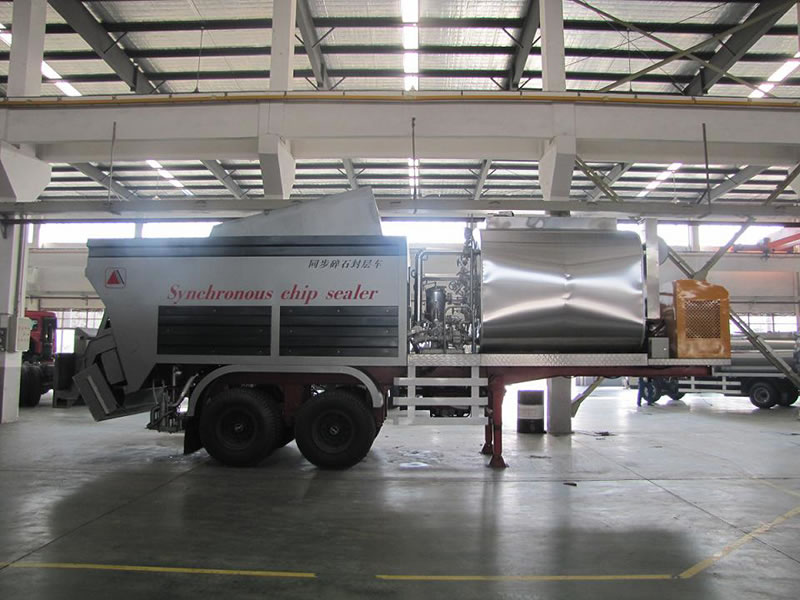

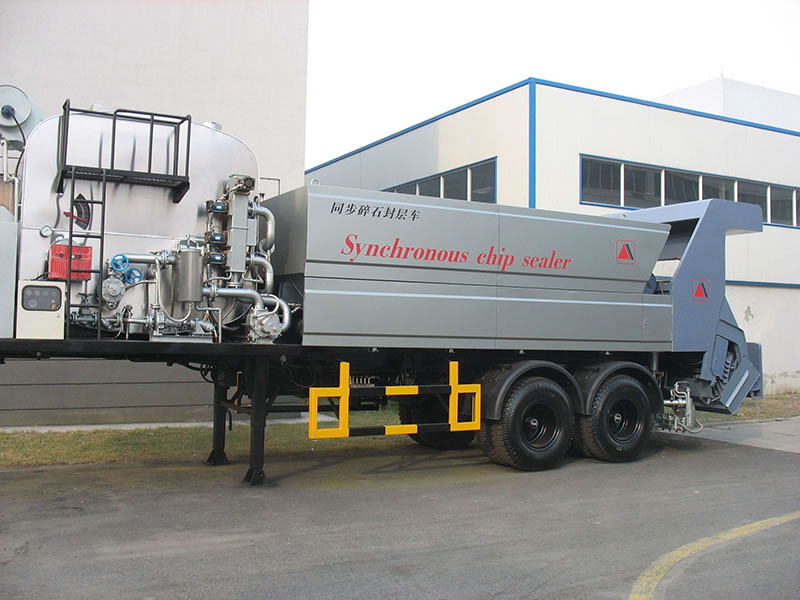

The trailer asphalt sealcoating machine and applicator is our newly-developed road construction equipment which is widely used for fast synchronous spraying operations. It can perform bitumen spraying and chippings spreading operations at the same time or respectively. As the Trailer Asphalt Sealcoating Machine and Applicator can help greatly improve the wear resistance, skidproof and waterproof performance of the road, it is being increasingly used. It is suitable for the construction of all grades of highways.
Main Technical Parameters of the Trailer Asphalt Sealcoating Machine and ApplicatorModel | LMT9350TFC |
Dimension(L*W*H mm) | 9700 X 2500 X 3600 |
Tank Capacity | 6 |
Aggregate Hopper (m3) | 12 |
Engine Model | YC4F60Z-T10 F7403 |
Kerb Mass (kg) | 3500 |
Rated Load Mass (kg) | 12800 |
Spray Width | 2070mm |
Max. Spray Width | 4000mm |
Spreading Quantity | 0.5-3.0 L/m2 |
Spray Bar Ground Clearance | 250-500mm |
Chippings Size | 5-25mm |
Zhejiang Metong Road Construction Machinery Company is a Chip Sealing Distributors and Equipment manufacturer and supplier in China. We have received ISO9001 certification. In addition to Chip Sealing Distributors and Equipment, we also provide other road equipment, such as asphalt distributor, heat preservation road maintenance, rubber asphalt plant. With advanced technology, precise metering and convenient operation, our products are exported to over forty countries and regions, including Russia, Laos, Philippines and Kenya. If you are interested in our pavement machinery, please contact us.
