Bitumen Transportation Truck

Brief Introduction

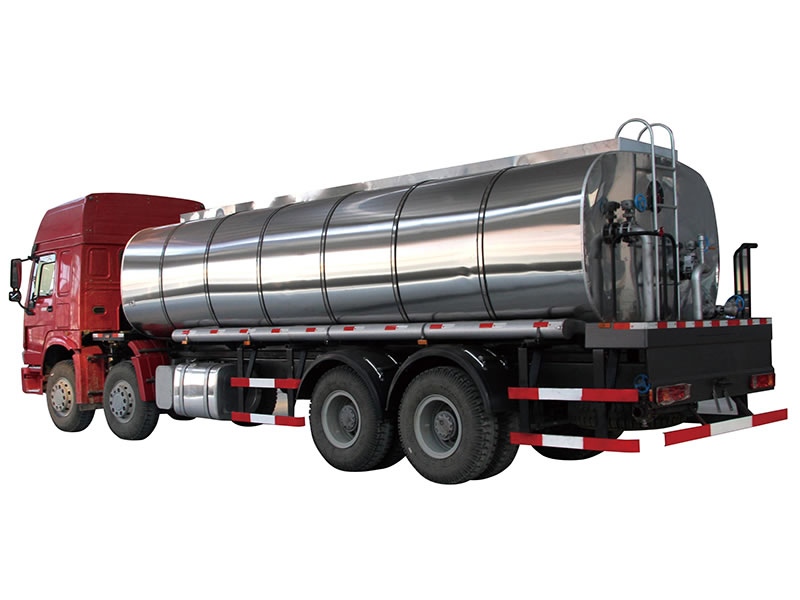

LMT5312GLQW bitumen transportation truck is a high-tech product newly developed by our company based on the needs for transporting large volume of asphalt and the lessons learned from similar products. This tank is equipped with bitumen transportation truck and high-power burner to realize the long distance transport of all types of asphalt with large capacity. The asphalt transport tank adopts unique heat preservation maintenance structure and is made of high effective thermal insulation materials.

All the working devices including the asphalt pump are driven by the hydraulic system with safe and reliable performance. LMT5312GLQW bitumen transportation truck features easy operation, fast operation speed and high levels of S&T content and is an ideal tool for asphalt transportation.

Model LMT5312GLQW
Overall Dimension (L/W/H mm) 11700×2496×3563
Tank Capacity (m3) 15.5
Chassis Model ZZ1317N4667C
Tire Specification 12.00-20
Approach /Departure Angle 16°/15°
Engine Rating/Rotation Speed (kw/r/min) 247/2200
Fuel Type Diesel
Seating Capacity (including the driver) 2
Top Speed (km/h) 90
Complete Vehicle Weight (kg) 16550
Rated Load (kg) 14320
Max. Flow of Asphalt Pump (L/min) 450
Max. Pressure of Hydraulic System (MPa) 20

Construction Case

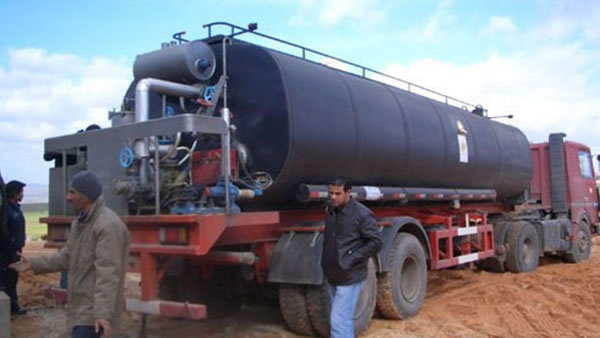

Metong's asphalt transport tank trailer in Angola
