Brief Introduction

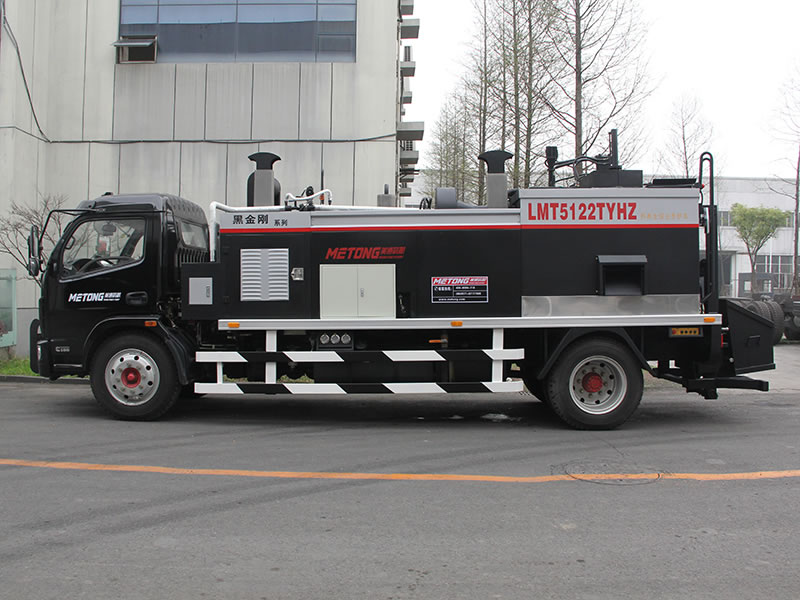

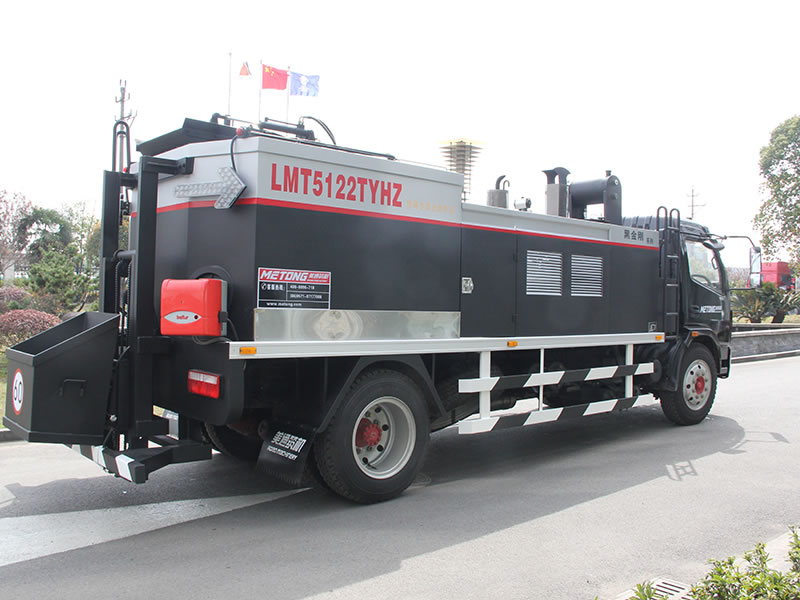

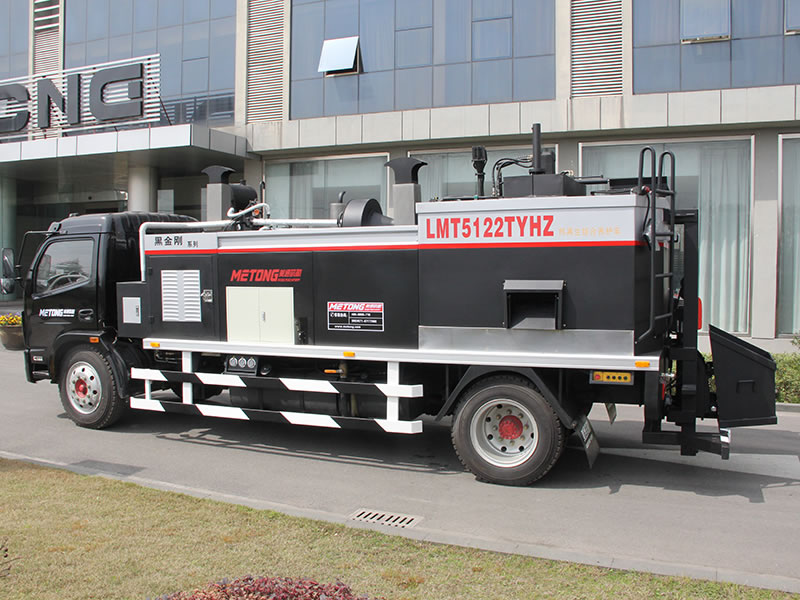

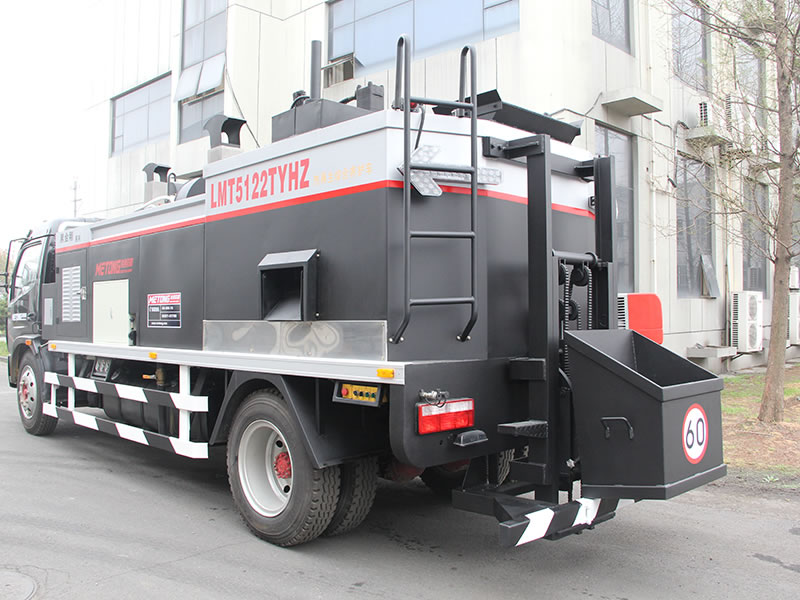

Due to the pavement diseases such as pit slot, crack and substance, it is necessary to do the patching and maintenance work for the asphalt road. Then a large amount of old asphalt mixture will be cleared away after digging and milling. It is estimated that the annual amount of the old asphalt mixture reaches 160 million tons only for the maintenance projects of our arterial highways. If such large amount of old asphalt mixture could not be recycled, it will cause serious environmental pollution and resources waste. In order to advocate the green maintenance concept, save the natural resources like asphalt and aggregate, and realize the resources recycling and environmental protection, Metong Company combines Chinese road maintenance situation with years of cooperative experience with American Phenix Company, and develops the LMT5120TYHZ hot recycling asphalt Road Maintenance EquipmentThis kind of maintenance truck combines multiple functions like hot in-place recycling of RAP materials, cold mixture heating, and new material mixing into one. It could work around the clock, which greatly reduces the cost and realizes the economy and practicability.
This hot recycling asphalt Road Maintenance Equipmentis mainly used to recycle the old asphalt mixture to provide the maintenance service for highway, municipal road and arterial highway of the first and second degree.
Technical ParameterModel | LMT5120TYHZ |
Product Name | Infrared Asphalt Repair |
Chassis Model | DFA1120SJ11D5 |
Pattern | Flat Head, 4×2 rear drive |
Engine Type | CY4102-CE4B |
Power (kw/rpm) | 100/2800 |
Emission Standard | GB17691-2005 (National Ⅳ) |
Tire Specification | 8.25-20/8.25R20 |
Outline Dimension (mm) | 7540×2250×3750 |
Complete Vehicle Kerb Mass (kg) | 8760 |
Max. Total Mass (kg) | 12250 |

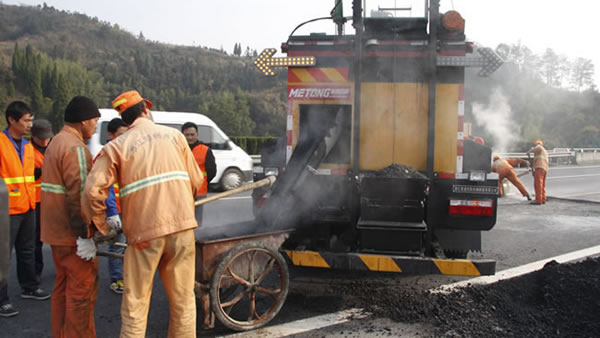

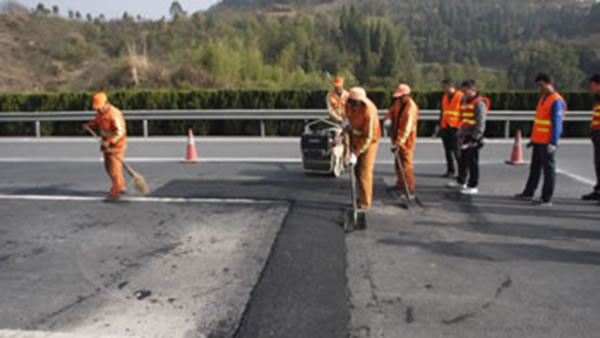

Construction Case
LMT5120TYHZ hot recycling asphalt maintenance truck used on the Hangzhou-Xin'an'jiang-Jingdezhen highway
