Bridge Inspection Vehicle (Platform Type)

Bridge Inspection Vehicle (Platform Type)
Bridge Inspection Vehicle (Platform Type)
Bridge Inspection Vehicle (Platform Type)
Bridge Inspection Vehicle (Platform Type)
Bridge Inspection Vehicle (Platform Type)
Inquiry Form

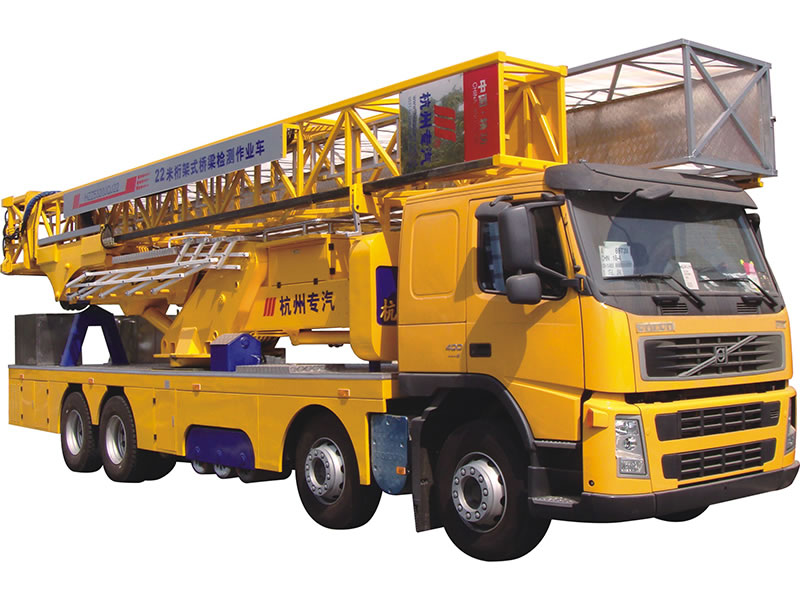

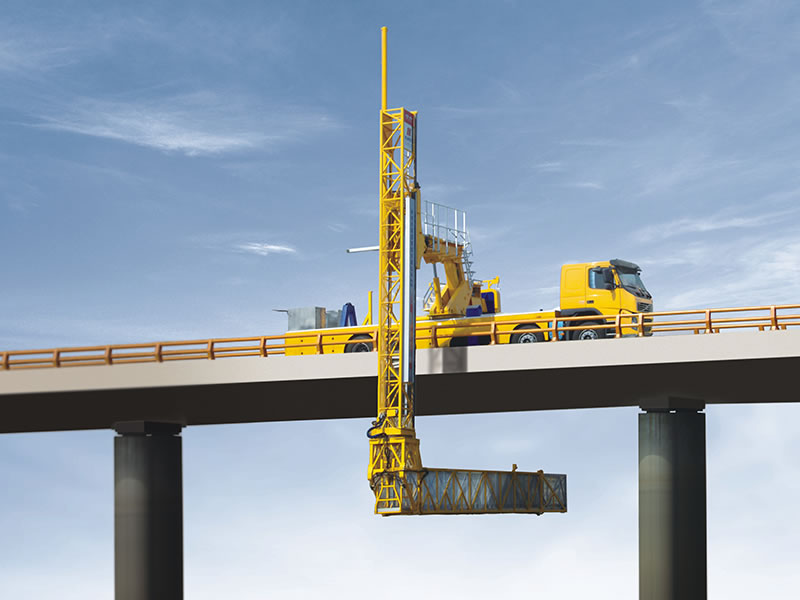

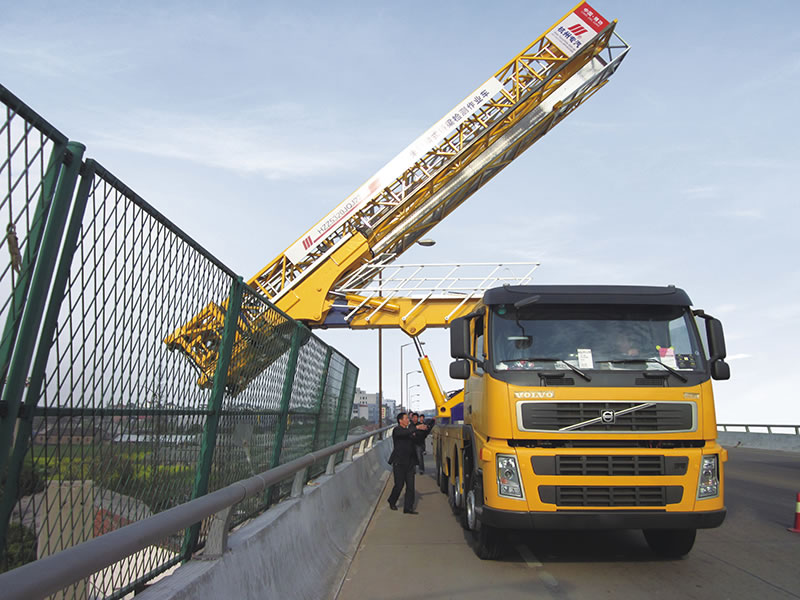

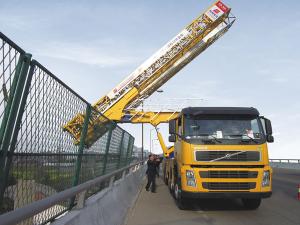

Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

Main specification for bridge Inspection unit:
Type Platform type
Max. horizontal range 22M
Max. lowering depth 7850mm
Width of platform 1080mm
Space required on bridge 2800mm
Max. load on platform 800KG
Max. load on telescopic platform 400KG
Max. overbridging of sidewalk 3500mm Option:3800mm
Max. crossing of sound barrier 3500mm Option : 4200mm / 5100mm
Rotation of platform 180°
G.V.W 37500KG
Overall dimensions 12595(L)×2500(W)×4000 (H)mm
    2. Asphalt Paver Finisher(Model SUM820/SUM820YE) A low-noise independent composite heat dissipation system driven by hydraulic power enables our crawler asphalt paver to work under high temperature up to 55°C.
    2. Cold Milling MachineThe milling drum of our cold milling machine manufactured with special technology is equipped with 100 milling tools and is able to work flexibly and stably. Its maximum milling depth can be 300mm.
    2. Soil Stabilizer (Model WBZ21)The WBZ21 soil stabilizer is a piece of dedicated road construction equipment we developed. It is mainly used to mix the foundation materials on the spot in the construction of roads, airports, urban buildings, etc.
    2. Bridge Inspection Vehicle (Bucket Type)Bridge Inspection Vehicle(Bucket type-HZZ5250JQJ16) is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.
