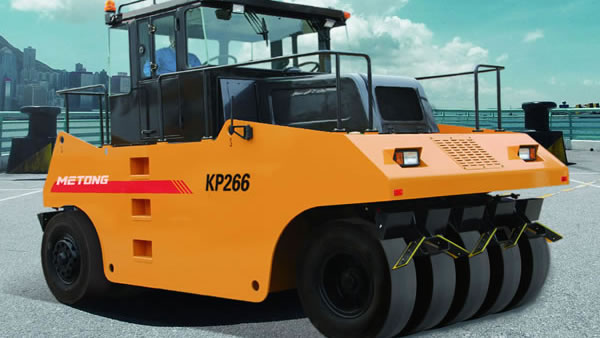

Pneumatic Tyred Roller (Full Hydraulic Roller, Model KP266)

Features
1. As a full hydraulic roller, our KP266 pneumatic tyred roller adopts SAUER hydraulic driving system, which can achieve stepless speed regulation and enhance the compaction effects to better meet the road construction requirements.
2. This pneumatic road roller is configured with a powerful DEUTZ engine and a maintenance-free battery cell.
3. Our pneumatic tyred roller looks elegant with a streamlined appearance and an upturning engine hood.
4. The road compaction machine' counter weight and ground pressure can be adjusted by increasing or reducing the weight of ballast or by changing the tyre pressure.
5. Pneumatic hydraulic braking, full hydraulic braking and dry braking are available to this heavy engineering vehicle.
6. Our pneumatic tyred roller has a safe and reliable pressure water sprinkling system with multi-level water filters.
7. The cab with air conditioner, double operation devices and comfortable seat creates a comfortable working environment for the operator.

Parameters of Pneumatic Tyred Roller
Item Unit Parameter
Operating mass (Min. / Max.) kg 26000
Ground pressure kPa 250-420
Compaction width mm 2750
Speed I km/h 0-7
Speed II km/h 0-14
Gradeability % 20
Turning radius mm 9000
Swing distance of front tyre mm ±45
Overlap between front & rear tyre mm 50
Min. ground clearance mm 290
Engine model - DEUTZ
Rated power kW 129
Tyre size (smooth) - 11.00-20
Tyre number (front/rear) - 5/6
Overall dimensions (L×W×H) mm 5200×2845×3380

Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.
