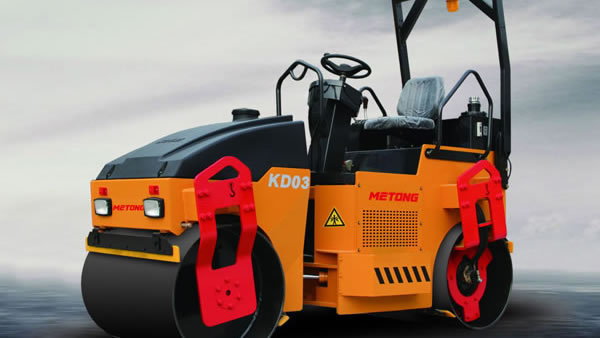

Double Drum Vibratory Roller (Full Hydraulic Road Roller, Model KD03)
Features
1. As a full hydraulic road roller, our KD03 double drum vibratory roller is of high performance and high working stability.
2. Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.
3. Fully hydraulic drive and electro-hydraulic control devices make our double drum vibratory roller easy to operate.
4. The traveling speed of this vibratory road roller can be adjusted through its continuously variable transmission system.
5. Articulated steering system gives high steering flexibility to the road construction machine.
| Item | Unit | Parameter |
| Operating mass | kg | 3000 |
| Static linear load | N/cm | 120/170 |
| Vibration amplitude | mm | 0.55 |
| Vibration frequency | Hz | 50 |
| Centrifugal force | kN | 30 |
| Speed range | km/h | 0-8.5 |
| Gradeability | % | 30 |
| Turning radius (inside/outside) | mm | 3065/4400 |
| Drum width | mm | 1040 |
| Drum diameter | mm | 750 |
| Engine model | - | ZN385Q |
| Rated power | kW | 21 |
| Overall dimension (L×W×H) | mm | 2900×1240×2600 |
Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.
